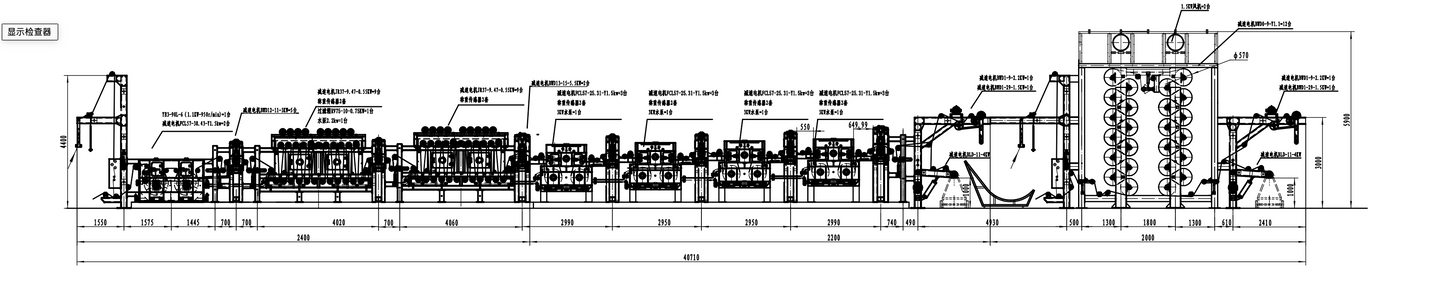

Combined Scouring, Desizing and Sanforizing Machine

Combined Scouring, Desizing and Sanforizing Machine

¥0.00
¥0.00
Sale Sold out

Designed for desizing and washing of fabrics including:
Polyester Taffeta, Oxford Fabric, Imitation Memory Fabric, Nylon Taffeta, Nylon, 4-Way Spandex Fabric, Pongee, Peach Skin, etc. Ensures superior pre-dyeing performance through optimized fabric treatment.

For 4-Way Spandex Fabric, it enables stable control of the shrinkage rates in both the warp and weft directions, thereby ensuring the fabric's grammage.

Manufacturer Dehong, China
Technical Features
  • Versatile Application:
    • Broad fabric compatibility
    • High-efficiency
  • Advanced control system:
    • AC frequency conversion speed regulation
    • PLC control
  • Anti-Wrinkle Design
    • 200mm diameter guide rollers
    • Larger fabric wrap angle
  • Precision Tension Control
    • Full-machine tension sensor system
    • Stable low-tension operation
  • The pre-shrinking box is a mesh roller spray box with a diameter of 570mm and independent transmission, which guarantees the low-tension operation of the fabric.
  • The drying cylinders operate in a low-tension mode with overfeeding.
Configuration

Left/right-hand configuration (operator facing inlet side, fabric drive system positioned on left/right side)
Machine Width

2000-2400mm
Speed

100-120m/min
Heating Method

Steam heating
Fabric Handling
  • Infeed: Open-width feeding
  • Outfeed: Dual-mode
    • open-width or rolled
Note

Offer tailored solutions as per requirements
